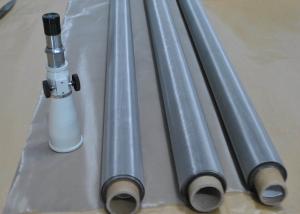

Woven Stainless Steel Wire Mesh Filter Mesh,Stainless Steel Plain Woven Wire Mesh
Most of the below mesh sizes are in stock, with common material SS304 and SS316.
Plain weave: 2X2mesh to 635X635 mesh;
Twill weave: 20X20mesh to 400X400mesh;
Plain Dutch weave: 10X64mesh to 80X700mesh;
Twill Dutch weave: 20X250mesh to 400X2800mesh;
Reversed Dutch weave: 48X10mesh to 720X150mesh.
Commonly Used Material
304 Stainless Steel Wire Mesh is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.
304L Stainless Steel Wire Mesh has similar properties as 304ss but lower carbon content to permit better welding.
316 Stainless Steel Wire Mesh has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.
316L Stainless Steel Wire Mesh has similar properties as 316ss but lower carbon content to permit better welding.
Available Weaving Type
1. Plain Weave: Also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: Similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: Similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: Difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Available mesh specifications
Most of the below stainless steel wire mesh filter meshs are in stock.
If you did not find the mesh you want, please kindly contact us.
Plain Weave Stainless Steel Woven Wire Mesh
| Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh |
| Mesh/inch | Wire diameter
(mm) | Aperture
(mm) | -- | Mesh/inch | Wire diameter
(mm) | Aperture
(mm) |
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 |
| 50mesh | 0.19 | 0.318 | 500mesh | 0.025 | 0.0385 |
Technical Note:
1. Standard roll length: 15.24m, 30m, 30.5m, 61m
2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25')
3. Special sizes available at request
4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request. |
Twill weave
| Mesh/inch | Diameter(mm) | Aperture(mm) | - | Mesh/inch | Diameter(mm) | Aperture(mm) |
| 100mesh | 0.14 | 0.114 | 325mesh | 0.035 | 0.043 |
| 120mesh | 0.1 | 0.111 | 350mesh | 0.032 | 0.0405 |
| 150mesh | 0.09 | 0.079 | 400mesh | 0.03 | 0.0335 |
| 180mesh | 0.07 | 0.071 | 450mesh | 0.026 | 0.0304 |
| 200mesh | 0.06 | 0.067 | 500 mesh | 0.025 | 0.0258 |
| 250mesh | 0.045 | 0.0566 | 600 mesh | 0.018 | 0.0243 |
| 300mesh | 0.04 | 0.0446 | 635mesh | 0.018 | 0.022 |
Plain Dutch Weave
Mesh/inch
Wrap*weft | Wire diameter
Wrap*weft(mm) | Aperture
(um) | - | Mesh/inch
Wrap*weft | Wire diameter
Wrap*weft(mm) | Aperture
(um) |
| 8 X 62 | 0.63mm X 0.45mm | 300 | 45 X 250 | 0.16mm X 0.112mm | 56 |
| 10 X 79 | 0.50mm X 0.355mm | 250 | 50 X 250 | 0.14mm X 0.11mm | 53 |
| 12 X 64 | 0.58mm X 0.40mm | 280 | 55.5 X 280 | 0.14mm X 0.10mm | 50 |
| 14 X 88 | 0.40mm X 0.30mm | 180 | 65 X 330 | 0.11mm X 0.08mm | 36 |
| 19 X 140 | 0.315mm X 0.20mm | 140 | 70 X 350 | 0.11mm X 0.08mm | 35 |
| 20 X 300 | 0.35mm X 0.20mm | - | 70 X 385 | 0.11mm X 0.07mm | 32 |
| 24 X 110 | 0.355mm X 0.25mm | 120 | 78 X 700 | 0.11mm X 0.08mm | 30 |
| 25 X 140 | 0.28mm X 0.20mm | 100 | 80 X 400 | 0.10mm X 0.065mm | 40 |
| 30 X 150 | 0.25mm X 0.18mm | 80 | 80 X 600 | 0.10mm X 0.06mm | - |
| 35 X 175 | 0.224mm X 0.16mm | 71 | 80 X 800 | 0.15mm X 0.04mm | - |
| 40 X 200 | 0.20mm X 0.14mm | 60 | 81 X 780 | 0.10mm X 0.07mm | 30 |
| | | | 90 X 550 | 0.12mm X 0.05 | - |
Twill Dutch weave
Mesh/inch
Wrap*weft | Wire diameter
Wrap*weft(mm) | Aperture
(um) | - | Mesh/inch
Wrap*weft | Wire diameter
Wrap*weft(mm) | Aperture
(um) |
| 91 X 787 | 0.10mm X 0.07 | 25 | 200 X 600 | 0.071mm X 0.06 | - |
| 101 X 900 | 0.10mm X 0.063 | 20 | 200 X 800 | 0.071mm X 0.06 | - |
| 120 X 400 | 0.10mm X 0.075 | - | 200 X 1400 | 0.071mm X 0.04 | 12 |
| 127 X 1100 | 0.07mm X 0.05 | 17 | 202 X 1760 | 0.05mm X 0.032 | 10 |
| 160 X 1500 | 0.063mm X 0.04 | 15 | 216 X 1860 | 0.045mm X 0.030 | 9 |
| 165 X 400 | 0.071mm X 0.06 | - | 254 X 2000 | 0.04mm X 0.028 | 8 |
| 165 X 600 | 0.071mm X 0.05 | - | 285 X 2235 | 0.036mm X 0.025 | 7 |
| 165 X 800 | 0.071mm X 0.05 | 25 | 312 X 2100 | 0.035mm X 0.025 | - |
| 165 X 1100 | 0.071mm X 0.045 | - | 318 X 2235 | 0.036mm X 0.025 | - |
| 165 X 1400 | 0.071mm X 0.04 | 16 | 325 X 2300 | 0.035mm X 0.025 | 5 |
| 174 X 1700 | 0.063mm X 0.032 | 13 | 400 X 3100 | 0.035mm X 0.019 | 3
|
Processing products
Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
