Wholesale Woven Stainless Steel Wire Mesh 0.7mm,Hot Sale 304 and 316L Stainless Steel Filter Wire Mesh

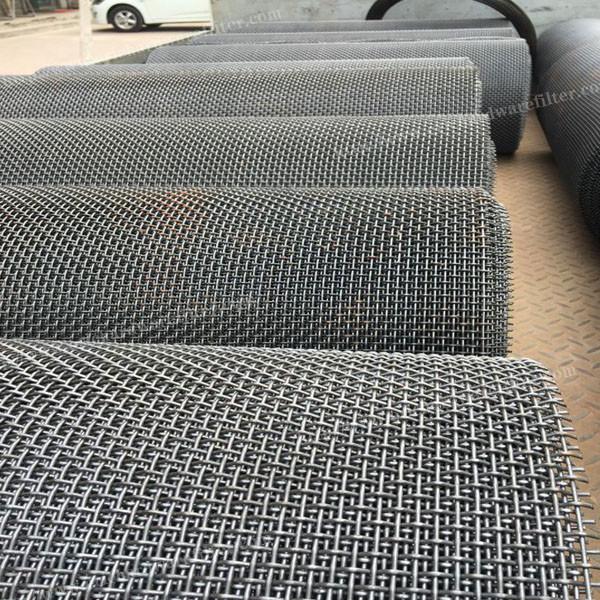

Stainless steel woven wire mesh
Material: 302, 304, 304L, 316, 316L, etc.
Wire diameter: 0.02-2.03mm.
Mesh size: 1*30m, 1.2*30m, 1.5*30m, 1.6*30m, 2*30m, etc.
Woven type: plain, twill, ducth.
Material
SS 430: Non Nickel and have magnetic;
SUS 202: non-magnetic, low anti-corrosion resistence;
SUS 304/304L: low-magnetic, good anti-corrosion resistence;
SUS 316/316L: low-magnetic, better anti-corrosion resistence;
SUS 310S: anti-oxidization,anti-corrosive and high temperature resistence
Mesh count
SUS 202/310s sutiable for mesh count from 1 to 100( plain weave);
SUS 304/304L suitable for mesh count from 1 to 400(plain/dutch weave);
SUS 316/316L 430 suitable for mesh count from 1 to 600(plain/twill/dutch weave .
Stainless steel wire mesh is heat-resisting, acid-resisting and corrosion-resisting. This kind of wire mesh is widely used in mining, chemicals, food products and others.
Our advantage:
1. OEM products is welcomed.
2. We are direct factory, so any quantity is acceptable.
3. We have ISO9001 Certificate.
4. Samples are available if needed.
5. Supply Mill Test Certificate with the products.
6. Our professional technicians could supply you suitable solutions.
Welcome to our factory!
| Mesh | Wire Dia. (MM) | Material(AISI) |
| 12meshX64mesh | 0.58/0.40 | 304 or 316 |
| 24meshX110mesh | 0.36/0.25 | 304 or 316 |
| 14meshX88mesh | 0.50/0.33 | 304 or 316 |
| 30meshX150mesh | 0.18/0.14 | 304 or 316 |
| 40meshX200mesh | 0.14/0.11 | 304 or 316 |
| 50meshX250mesh | 0.10/0.071 | 304 or 316 |
| 80meshX700mesh | 0.06/0.05 | 304 or 316 |
| 165meshX800mesh | 0.071/0.040 | 304 or 316 |
| 165meshX1400mesh | 0.05/0.032 | 304 or 316 |
| 200meshX1800mesh | 0.05/0.03 | 304 or 316 |
| 325meshX2300mesh | 0.030/0.025 | 316L |
| 400meshX2800mesh | 0.030/0.02 | 316L |
Weaving Type
TDR, Twilled Reverse Dutch Weave
RPD Reverse Plain Dutch Weave
PRD Plian Reverse Dutch Weave
1,Plain Weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
2,Twill: Wire Cloth in which each warp wire and each shute wire passes successively over and under the two adjacent wires -- in both the warp and shute directions. This over and under movement is shifted one wire with each pass of the shuttle. This pattern permits the weaving of heavier wires in varying meshes.
3,Plain Dutch Weave: Similar interlacing as in Plain Weave, except the warp wires are larger diameter than the shute wires. The lighter shute wires are driven up close thus forming a dense filtering medium. This weave displays a tapered or wedge-shaped opening.
4,Twill Dutch: This filter cloth specification technically combines the Twill Weave and Dutch Weave described above. The larger diameter warp wires successively pass over and under the lighter diameter shute wires. Each pass of the shute wires shifts the over and under movement one wire. The shute wires are driven up close, resulting in a tightly woven filter cloth with tapered or wedge shaped openings.
5,Twill Dutch Double: Very similar to Twill Dutch Weave, but by proper selection of the wire sizes, the shute wires actually overlap each other when driven up tight into position. This permits double the wires per inch in the shute direction. This type of wire cloth is usually considered a Micronic Grade filter cloth.
6,Stranded: In this type of weave, both the warp and shute wires are made up of separate wires, rather than a single wire. This weave is woven in the twill pattern, producing an exceptionally strong and tight mesh.
Specification of stainless steel wire mesh | Type | Mesh/Inch | Wire diameter
(inch) | OPen Area | Weight (LB) /100 Square Foot |
| Plain,Twill Weave Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
| Type | Mesh/Inch | Wire diameter
(inch) | Absolute Filtration Finess µm | Nominal Filtration Finess µm |
| Plain Dutch Weave Wire Mesh | 8 × 85-80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
| Twill Duntch Weave Wire Mesh | 20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 |
Processing products
Concentrating on putting all the efforts into maintaining product standards. We have a full range of production equipment, advanced technology, scientific management and inspection systems so that we can meet the exact requirements of our customers for various of wire mesh products.
