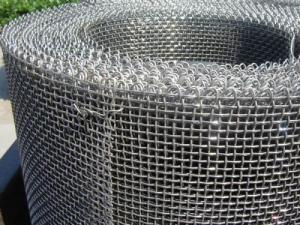

Plain Weave Square Stainless Steel Woven Wire Mesh Rolls Industrial Grade For Fencing

Brand Name : TL

Place of Origin : Hengshui,China

MOQ : 2 rolls

Price : Stainless steel woven wire mesh price negotiable

Supply Ability : 3000 rolls per month

Packaging Details : Standard export Wooden carton

Material : Stainless steel 304 316

Mesh size : 1-500 mesh

Wire diameter : 0.025-1.8mm

Application : Filter

Width : 1m,1.2m or customized

Length : 30 m or customized

MOQ : 2 Rolls

Customized : Yes

Contact Now

Stainless steel wire mesh plain weave industrial grade, square wire mesh rolls for fencing

Wire Mesh, also known as Wire Cloth, is amazingly versatile and is easily adapted to almost any application.

Wire Mesh Features:

Economical Large open area

Lightweight Attractive and versatile

Easy handling, cutting and shearing Available in a variety of styles and materials

Material: Stainless steel wire, brass wire, bronze wire, copper wire, iron wire, galvanized wire, aluminum wire, aluminum alloy wire, nickel wire, molybdenum wire, palladium wire, platinum and rhodium alloy wire, silver wire, gold wire, resistance wire, titanium wire, Monel wire.

Classified by process methods,stainless steel wire mesh can be divided into woven wire mesh and welded wire mesh

Classified by weaving types, stainless steel wire mesh can be divided into stainless steel woven wire cloth, crimped wire mesh,chain link fence, hexagonal wire mesh and so on.

Shuttle-weave s.s. mesh include shuttle-weave mesh(closed selvage)and non-shuttle-weave mesh(open-edge).

According to different warp or weft density and weave pattern, Stainless Steel Woven Wire Mesh can be divided into plain weave(PW),twill weave(TW), Plain dutch weave(PDW), Twill dutch weave(TDW),Reverse Plain and Twill dutch weave, Spagat weave etc.

S.s. mesh with different mesh shape can be called: square mesh, rectangular mesh and diamond mesh.

S.s. mesh with different outer shape can be divided into mesh in rolls, panels and strips

As divided by applications, s.s.mesh can be called stainless steel filer cloth, stainless steel fencing and decorative wire mesh.

Specification:

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
	Inch	MM	Inch	MM	%
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.045	1.13	50.7	34.5
18X18	0.017	0.432	0.039	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.028	0.7	44.2	31.8
30X30	0.013	0.33	0.02	0.52	37.1	34.8
30X30	0.012	0.305	0.021	0.54	40.8	29.4
30X30	0.009	0.229	0.024	0.62	53.1	16.1
35X35	0.011	0.279	0.018	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.008	0.191	0.009	0.23	30.5	23.7
60X60	0.007	0.178	0.01	0.25	33.9	20.4
70X70	0.007	0.165	0.008	0.2	29.8	20.8
80X80	0.007	0.165	0.006	0.15	23	23.2
80X80	0.006	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.006	0.16	30.1	15.8
100X100	0.005	0.114	0.006	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.004	0.089	0.007	0.17	42.3	8.3
110X110	0.004	0.102	0.005	0.13	30.7	12.4
120X120	0.004	0.094	0.006	0.117	30.7	11.6

Weaving method

Plain Weave Square Stainless Steel Woven Wire Mesh Rolls Industrial Grade For Fencing

1. Stainless steel wire mesh Plain weave

Mesh	Wire dameter(mm)	Opening(mm)	Materials(AISI)
7x7	1.00	2.63	304 or 316
10x10	0.60	1.94	304 or 316
12x12	0.50	1.62	304 or 316
16x16	0.40	1.19	304 or 316
18x18	0.35	1.06	304 or 316
20x20	0.35	0.87	304 or 316
24x24	0.26	0.80	304 or 316
30x30	0.30	0.55	304 or 316
35x35	0.17	0.56	304 or 316
40x40	0.23	0.40	304 or 316
50x50	0.20	0.31	304 or 316
60x60	0.15	0.27	304 or 316
70x70	0.12	0.24	304 or 316
80x80	0.13	0.19	304 or 316

2. Stainless steel wire mesh and cloth Twill weave

Mesh	Wire diameter(mm)	Opening(mm)	Material(AISI)
250X250	0.040	0.063	316
300X300	0.040	0.044	316
325X325	0.035	0.043	316L
350X350	0.030	0.033	316L
400X400	0.030	0.033	316L
450X450	0.028	0.028	316L
500x500	0.025	0.026	316L

3. Stainless steel wire mesh and cloth Dutch weave

Mesh	Wire diameter(mm)	Material(AISI)
12x64	0.58x0.40	304 or 316
24x110	0.36x0.25	304 or 316
14x88	0.50x0.33	304 or 316
30x150	0.23x0.18	304 or 316
40x200	0.18x0.13	304 or 316
50x250	0.14x0.11	304 or 316
80x700	0.10x0.08	304 or 316
165x800	0.071x0.040	304 or 316
165x1400	0.06x0.04	304 or 316
200x1800	0.05x0.032	304 or 316
825x2300	0.035x0.025	316L
400x2800	0.030x0.020	316L

Plain Weave Square Stainless Steel Woven Wire Mesh Rolls Industrial Grade For Fencing

Company introduction

Plain Weave Square Stainless Steel Woven Wire Mesh Rolls Industrial Grade For Fencing

Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.

Thanks for taking time to view our products,we are looking forward to cooperating with you.
