Place of Origin : Hengshui,China
MOQ : 100 Pieces
Price : According to order quantity,negotiable
Supply Ability : 5000 Pieces per week
Packaging Details : 1)Standard export packing in carton or wooden box. 2)According to the requirements of the customer.
Material : Stainless steel 201.304.316
Hole Shape : Round Square
Mesh count : 2-635 Mesh
Thickness : 0.04-1mm
Weave style : Plain,twill,dutch
Width : 20-80mm

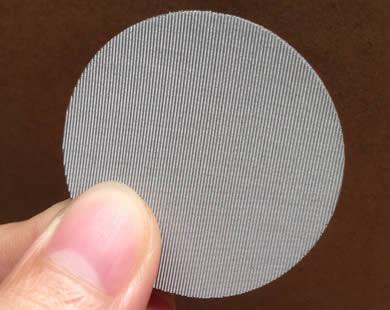

20 50 100 Rimmed stainless steel wire mesh filter disc, stainless steel wire mesh filter disc for plastic extrusion
Filter disc, also named of wire mesh discs, is mainly made of stainless steel woven wire cloth, stainless steel sintered mesh, galvanized wire mesh and brass wire cloth, etc.
It is mainly used to remove unwanted impurities from fluid, air, or solid. It can be made of single layer or multi layers filter packs, which can divide into spot welded edge and aluminum framed edge. Besides, it can be cut into various shapes, for example round, square, polygon and oval, etc.
Material | stainless steel,copper, black wire cloth |
Hole type | square hole, round hole or as your required |
Weaving type | plain weave, twill weave, dutch weave |
Thickness | 0.04-1mm |
Edge material | according to customer's requirement, like stainless steel, aluminum |
Mesh | 2-600mesh or as your required |
Wire diameter | 0.02-1mm |
Feature | 1. Guaranteed easy to clean 2. Designed to never break (lifetime guarantee) 3.so many holes per square inch for clean, grit free coffee 4. corrosion resistance, high temperature resistance, anti-acid, |
Application | 1. Suitable for different kinds of filter, dust removal and separation requirements. 2. Suitable for petroleum, chemical, mining, food, pharmaceutical, coating and other filter from all walks of life |
Woven type of stainless steel filter disc
Details sheet:
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
Inch | MM | Inch | MM | |||
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
![]() |
